3-phase UPS system
From 10 to 60 kVA

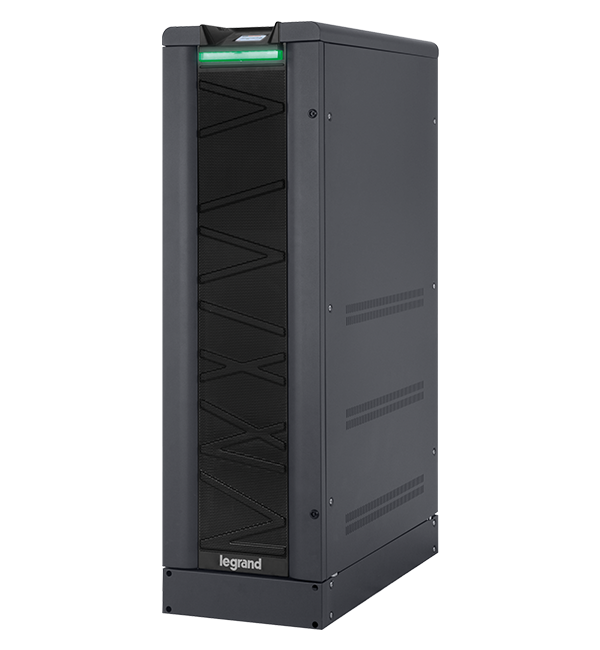

The UPS KEOR T EVO is an uninterruptible power supply with 3-level IGBT and high-frequency PWM technology and double-conversion technology. It has a looped neutral conductor and has the possibility to build up N+X redundancies by connecting up to 8 systems in parallel.
It is available in the power levels 10-15-20-30-40-60 kVA (10-15-20 kVA also in compact version). The system is designed for the possibility of building batteries internally on bays or externally in a battery cabinet. The UPS is available as a tower housing, with two different housing variants being offered.
General data
- Rated power 10 to 60kVA
- Output Power Factor = 1 (kVA = kW)
- Three-phase UPS system
- Third Level Inverter Technology
- IGBT inverters and rectifiers
- High efficiency up to 96%
- Digital Signal Processor (DSP)
- Input Power Factor Correction (PFC)
- Graphical 3.5″ TFT touchscreen
- Low input current distortion factor (THDi), low harmonic distortion output voltage (THDu)
- Compatible with generator supply
- Up to 4 units can be connected in parallel
- Communication Ports
